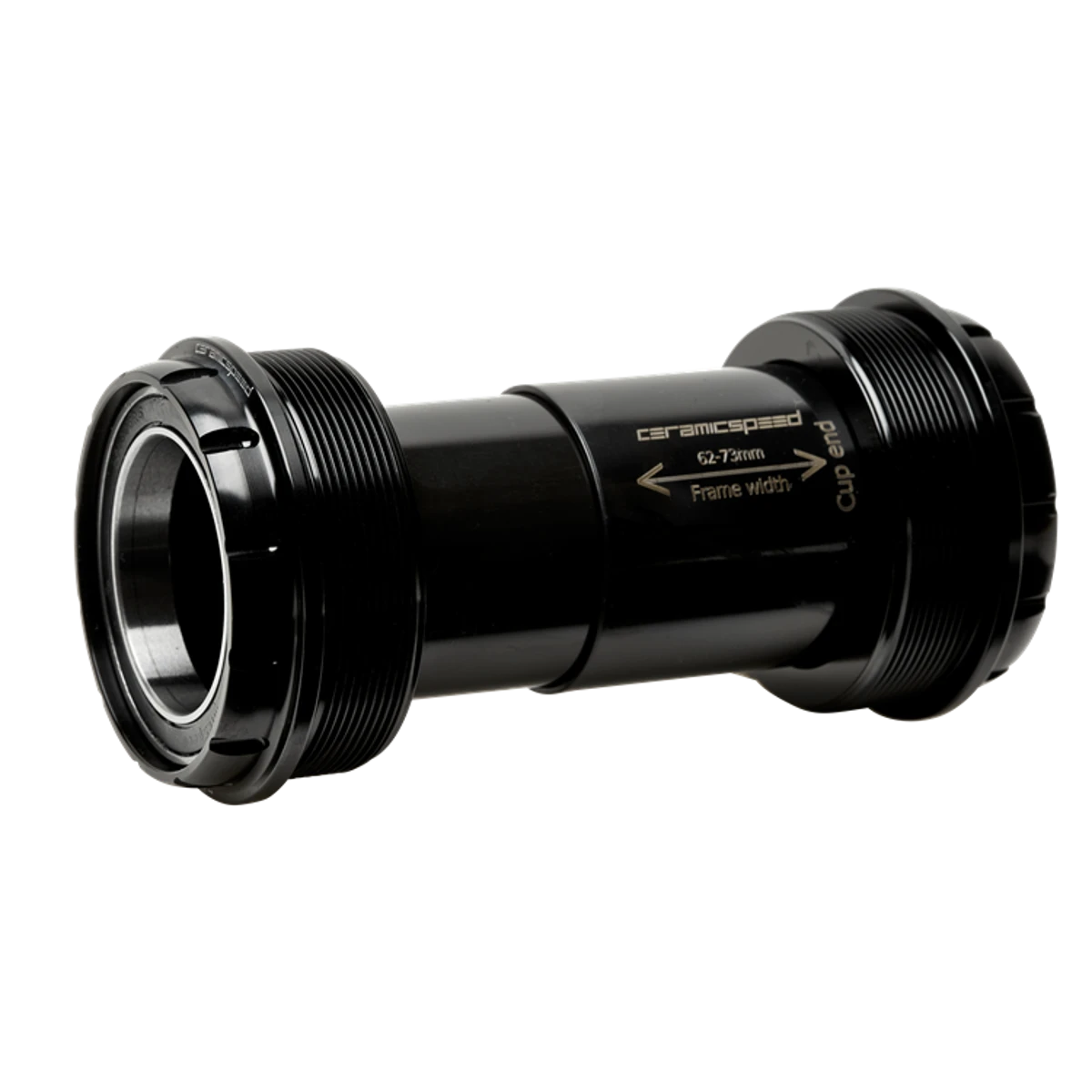

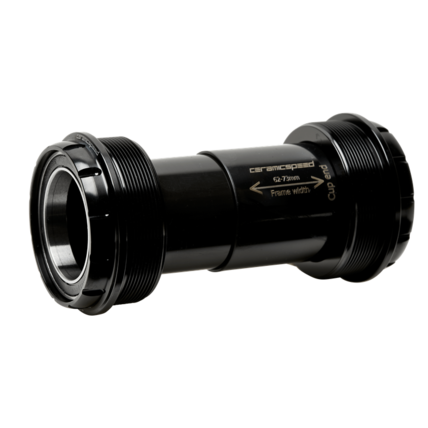

T47/68 30mm Black Coated
T47 is a standard created by custom frame builders. It’s threaded, has an inner diameter of 47mm, and is 68mm wide. It has the design benefits of being oversized and wide, but also the practical benefits of threads.
This kit pairs those bb’s with 30mm spindle cranks. The cups have CeramicSpeed bearings pressed in. There are two bearing options. The Standard Bearing has CeramicSpeed Balls and hardened-steel races. The Coated Bearing has the same balls running on a 3-micron thick coating placed on top of those hardened-steel races for greater durability and less friction still.
This BB is compatible with 68mm frames.
Bottom Bracket tool for installation: BBT-79.
In The Box
2 cups with bearings installed.
2 1mm spacers.
2 0.5mm spacers.
2 dust covers.
10ml syringe All Round Grease.
